Product introduction

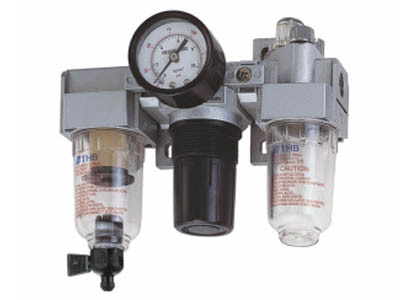

Thb-frl miniature air control unit
Mini three - stage three - point combination
Air filter/regulator/oiler module (FRL air control unit) /Air combination/air source treatment/modular FRL unit/air preparation/air preparation unit/filter regulator oiler combination/ FRLCombination unit/filter, regulator, oiler combination/FRL filterregulador lubricador / Filtro FRL regulador lubrificador / Druckluft Aufbereitung / Filtro regolatore lubrificatore /Фильтр-влагоотделитель/Регулятордавления/Лубрикатор/ FILTRErégulateurlubrificateur / FILTRE，regulatorer，sm?reapparater/過濾器，regulatorer，sm?rjare/フィルタレギュレータ+ルブリケータ/ FRLユニット/モジュラタイプFRLコンビネーション/ SARTLANDIRICI /?????????????/Air conditioning unit/three point filter
Specifications:
| C201 | C202 | FRL212 | ||
| describe | FRL201 | FRL202 | ||
| air | ||||
| Port size（PT，NPT） | 1/8” | 1/4” | 1/4” | |
| 5μ | ||||
| Proving input pressure | si | 150 | 280 | |
| mpa | 1個(gè) | 2 | ||
| Proof output pressure | si | 145 | 232 | |
| mpa | 0.99 | 1.6 | ||
| Maximum flow (litres/min) | 1000 | 1100 | 1100 | |
| Operating temperature range | 5 ℃ ?60 ℃ | |||
| The drainage capacity | 15 ml | |||
| Oil capacity | 30 ml | |||
| Minimum droplet flow（L / min（ANR））* | 15 | |||
| Recommended lubricant | ISO VG-32 | |||
| More choice | ||||
| Air filter | F201 | F202 | F212 | |
| Voltage regulator | R201 | R202 | R212 | |
| Air filter + regulator | FR201 | FR202 | FR212 | |
| lubricator | L201 | L202 | L212 | |
| Compliance with international norms | 流量：ISO 6358 / ISO 6953 | |||
* the flow rate is 5 drops/min or higher under the following conditions: inlet pressure is 0.5mpa; Level 1 turbine oil (ISO VG32); The temperature in the 20 ° C; Oil regulator fully open.
* for loops that are repeatedly connected and disconnected on the outlet side, adjust to minimize or increase the average air consumption per minute.
* if the working flow is too low, proper lubrication will not be possible. According to the minimum trickle rate in the catalog, select the appropriate size lubricator.
Compliance with international norms
Air filters: ISO 5782-1&-2 / JIS B 8371
Regulator: ISO 6953-1&-2 / JIS B 8372
Air filter + regulator: ISO 5782-1&-2 / ISO 6953-1&-2 / JIS B 8372 / JIS B 8371
Lubricator: ISO 6301-1&-2 / JIS B 8378
Features:
1. Compact design, limited space
2. Easy installation
3. Cost-effective
